Q43L-10000 Heavy Duty Scrap Metal Gantry Shear with 1000-ton Cutting Force and 8000mm Feeding Chamber

Q43L-10000 Heavy Duty Scrap Metal Gantry Shear with 1000-ton Cutting Force and 8000mm Feeding Chamber
Q43L-10000 Heavy Duty Scrap Metal Gantry Shear with 1000-ton Cutting Force and 8000mm Feeding Chamber
Q43L-10000 Heavy Duty Scrap Metal Gantry Shear with 1000-ton Cutting Force and 8000mm Feeding Chamber Q43L-10000 Heavy Duty Scrap Metal Gantry Shear with 1000-ton Cutting Force and 8000mm Feeding Chamber Q43L-10000 Heavy Duty Scrap Metal Gantry Shear with 1000-ton Cutting Force and 8000mm Feeding Chamber Q43L-10000 Heavy Duty Scrap Metal Gantry Shear with 1000-ton Cutting Force and 8000mm Feeding Chamber
Informasi Dasar
Tempat asal: Cina
Nama merek: WANSHIDA
Sertifikasi: CE and ISO9001
Nomor model: Q43L-10000
Kuantitas min Order: 1 Set
Harga: Bisa dinegosiasikan
Kemasan rincian: Pengepakan Layak Laut
Waktu pengiriman: 45 hari
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 10 set/bulan
Harga terbaik Hubungi sekarang
Model: Q43L-10000 Ruang Makan: 8000×1800×900mm
Baja Bulat Maksimum: Φ150mm Baja Persegi Maksimum: 145×145mm
kapasitas pelat: 80×1700mm (Q235) Lebar pisau: 1800mm
Pembukaan Minimal: 700mm Kecepatan Pemotongan: 2–3 Pemotongan/Menit
Menyoroti:

heavy duty scrap metal gantry shear

,

industrial baler machine with 8000mm feeding

,

270kW power metal gantry shear

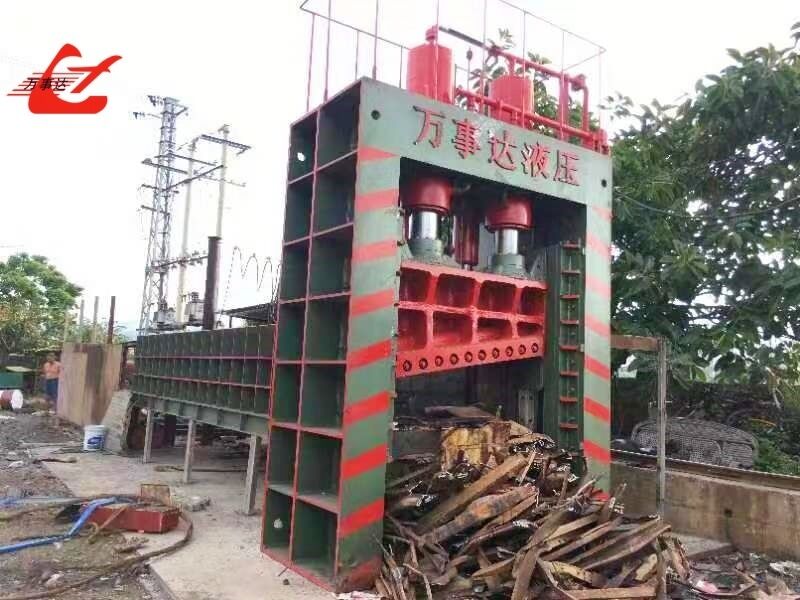

Q43L-10000 Heavy Duty Scrap Metal Gantry Shear Featuring 8000mm Feeding Chamber and 270kW Power

The Q43L-10000 Hydraulic Gantry Shear is designed for heavy-duty scrap metal processing, steel plate cutting, and structural steel recycling applications. With a powerful 1000-ton cutting force and a large feeding chamber, the machine is suitable for high-capacity scrap yards, steel mills, and automobile dismantling facilities.

It helps operators reduce transportation costs, improve furnace charging efficiency, and increase the value of recycled scrap materials.

Cause

Large recycling facilities often face:

  • Oversized scrap materials
  • High labor costs
  • Low manual cutting efficiency
  • Rising transportation expenses
  • Inconsistent scrap sizes affecting resale value

Modern recycling operations require automated, reliable, and high-capacity processing equipment.

Solution

The Q43L-10000 provides a professional solution through its 1000-ton cutting system, large feeding box, reinforced frame structure, and hydraulic power unit. The machine enables continuous operation while reducing labor requirements and improving processing efficiency.

Specifications
Item Specification
Model Q43L-10000
Cutting Force 10000kN (1000 Ton)
Feeding Chamber 8000×1800×900mm
Maximum Round Steel Φ150mm
Maximum Square Steel 145×145mm
Plate Capacity 80×1700mm (Q235)
Blade Width 1800mm
Minimum Opening 700mm
Cutting Speed 2–3 Cuts/Min
Cutting Angle 9°
Working Pressure 28MPa
Main Motor Power 270kW
Power Supply 380V / 3 Phase / 50Hz
Hydraulic Pumps 6 Units
Cooling System Water Cooling
Machine Weight Approx. 140 Tons
Application

Suitable for:

  • Scrap Recycling Yards
  • Steel Mills
  • Automobile Recycling Facilities
  • Ship Recycling Companies
  • Metal Fabrication Plants
  • Heavy Industry Manufacturers

Materials:

  • Scrap Steel
  • Steel Plates
  • H-Beams
  • I-Beams
  • Channel Steel
  • Round Steel
  • Square Steel
  • Industrial Scrap
How It Works

Materials are loaded into the feeding chamber and compressed by the hold-down cylinders. Side compression cylinders move the material into the cutting zone. The main cutting cylinder drives the blade to shear the scrap into furnace-ready sizes.

The hydraulic system ensures stable and continuous operation.

How To Choose

Consider the following factors:

  1. Daily processing volume
  2. Material type
  3. Maximum scrap dimensions
  4. Automation requirements
  5. Installation space
  6. Power supply conditions

The Q43L-10000 is recommended for large-scale recycling facilities requiring continuous high-capacity operation.

FAQ
Q1: What materials can be processed?

Scrap steel, steel plates, structural steel, and industrial metal waste.

Q2: Is PLC automation available?

Yes, PLC control systems are available.

Q3: Does the machine require foundation work?

Yes, foundation requirements depend on site conditions and machine weight.

Q4: How long do the blades last?

Blade life varies by material type and operating conditions.

Q5: Can the machine be customized?

Yes, customization is available based on capacity, material, and site requirements.

After-sales Service
  • 12-Month Warranty
  • Remote Technical Support
  • Overseas Installation & Commissioning
  • Spare Parts Supply
  • Operator Training
  • Regional Support Through Russia Branch Office
